Side view
Front view
Internal construction
Scale detail added
Base Unit Lift duct Thrust Duct Motor Mounts Front Cabin
Centre Cabin Air Duct Cover Skirt R/C Installation
The superstructure was drawn out using photographs from the Griffon web site. Several views are needed and care taken over perspective.
The superstructure was built as three separate units to facilitate access to the base so that changes could easily be made. The front cabin is the first of the three units.

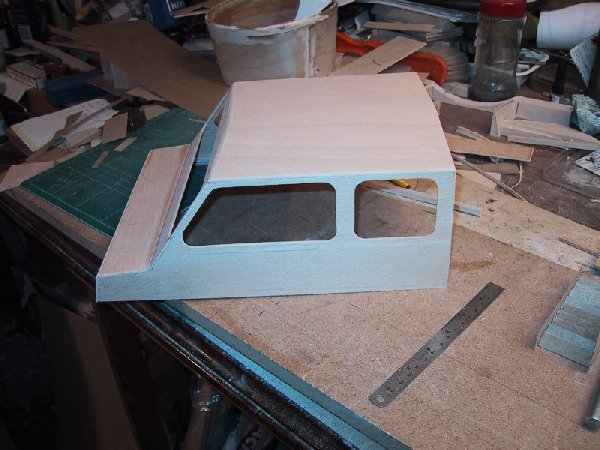

Side view |

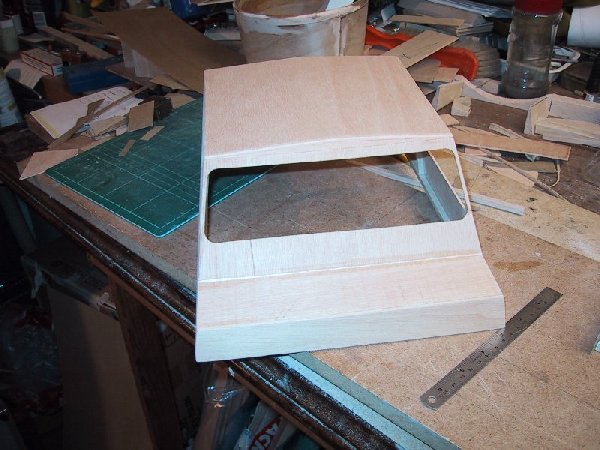

Front view |

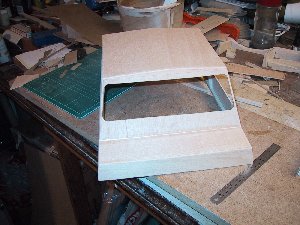

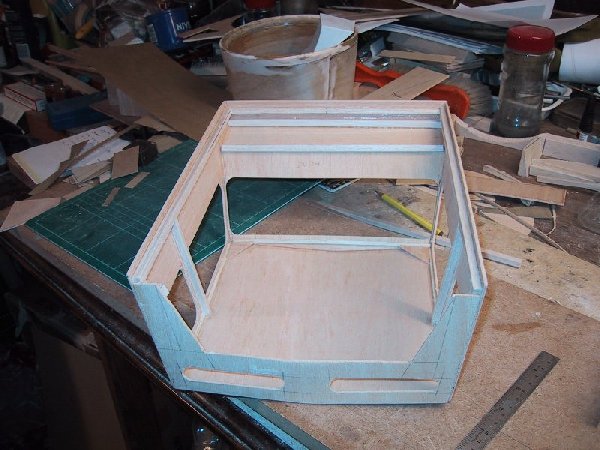

Internal construction |

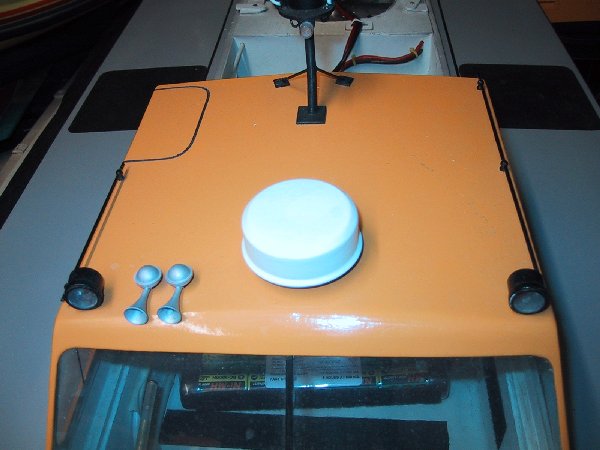

Scale detail added |

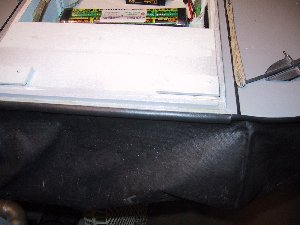

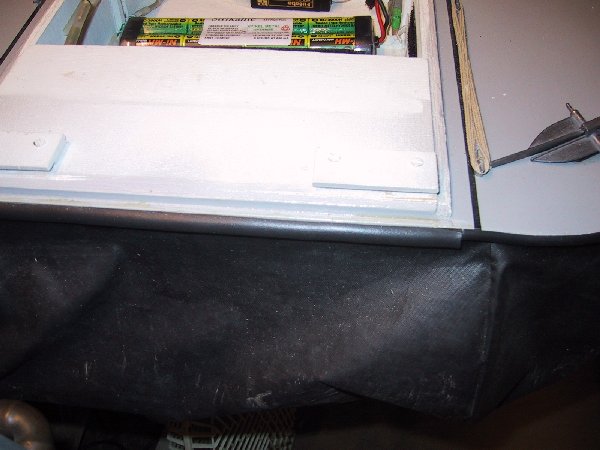

A groove on the inside front edge of the cabin locates with two tongues fixed to the front edge of the base unit. Two swivel tongues locate against the inside back edge of the cabin, one on each side.
