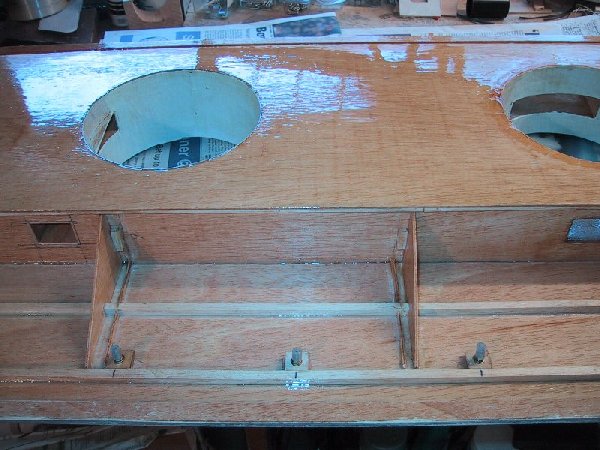

This was originally built to have two lift ducts, but early testing proved this was inefficient. These photos show both ducts with the front duct having a slot at the front only and not at each side like the rear duct.
The bolts around the edge are for skirt fixing - later removed to save weight and double sided tape used instead.

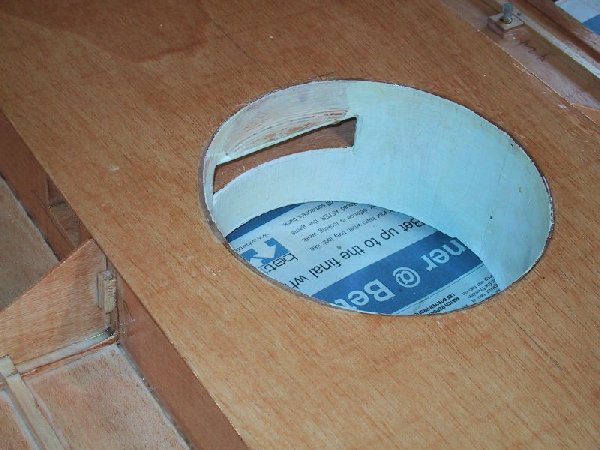

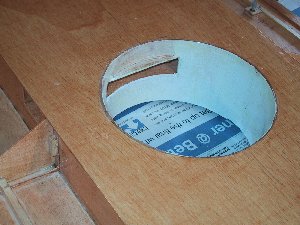

Front duct -- later removed |

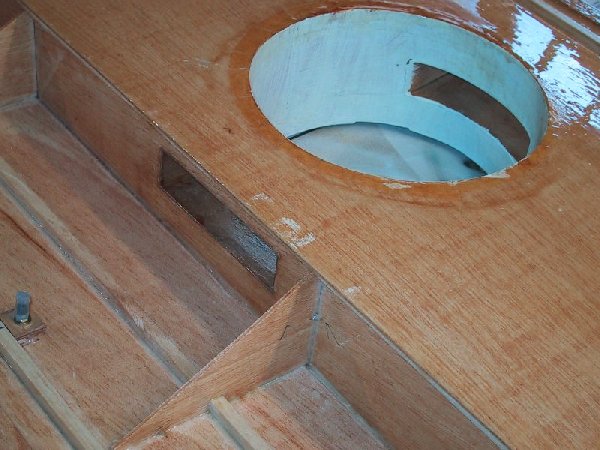

Rear duct skirt outlet |

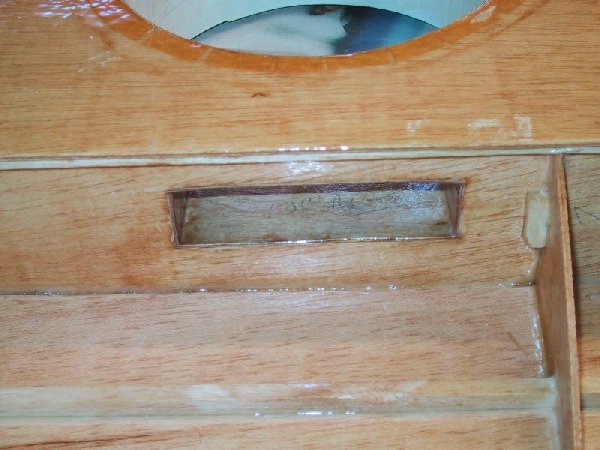

Front skirt vent --now removed |

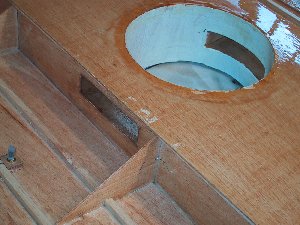

Rear duct air vent to skirt -another view |

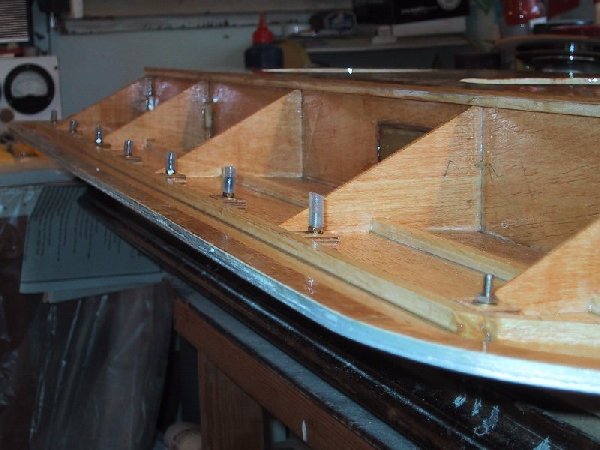

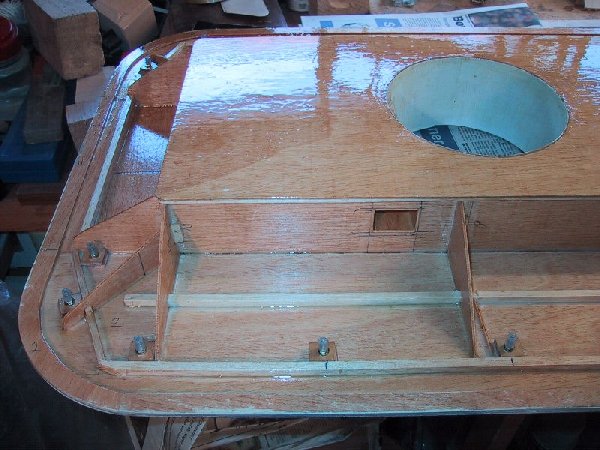

Studs are for original skirt fixing |

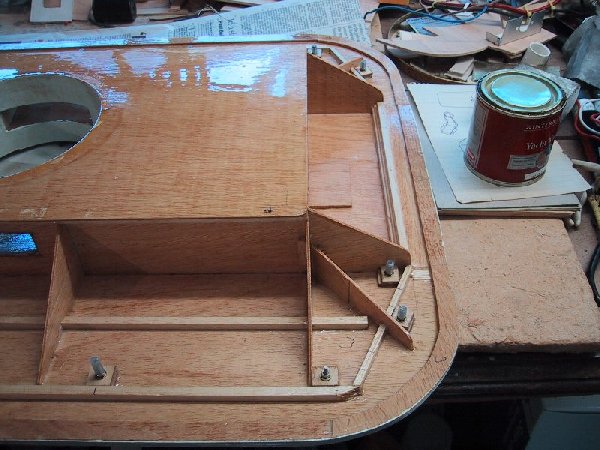

General view of underside |

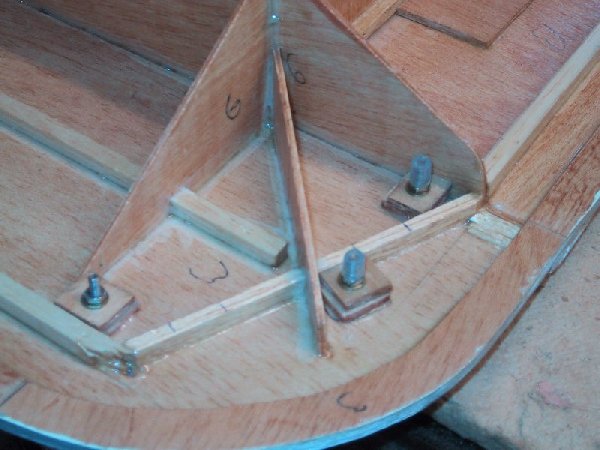

Detail of corner |
Corner fitting |
